K-series Dual Purpose Machine
As well as casks, the K-Series washes kegs without the need to remove the spears – it is believed to be the only machine on the market to effectively wash both casks and kegs.
- Raise the bed
- Connect the flexi-hoses to the kegs and place them on the bed.

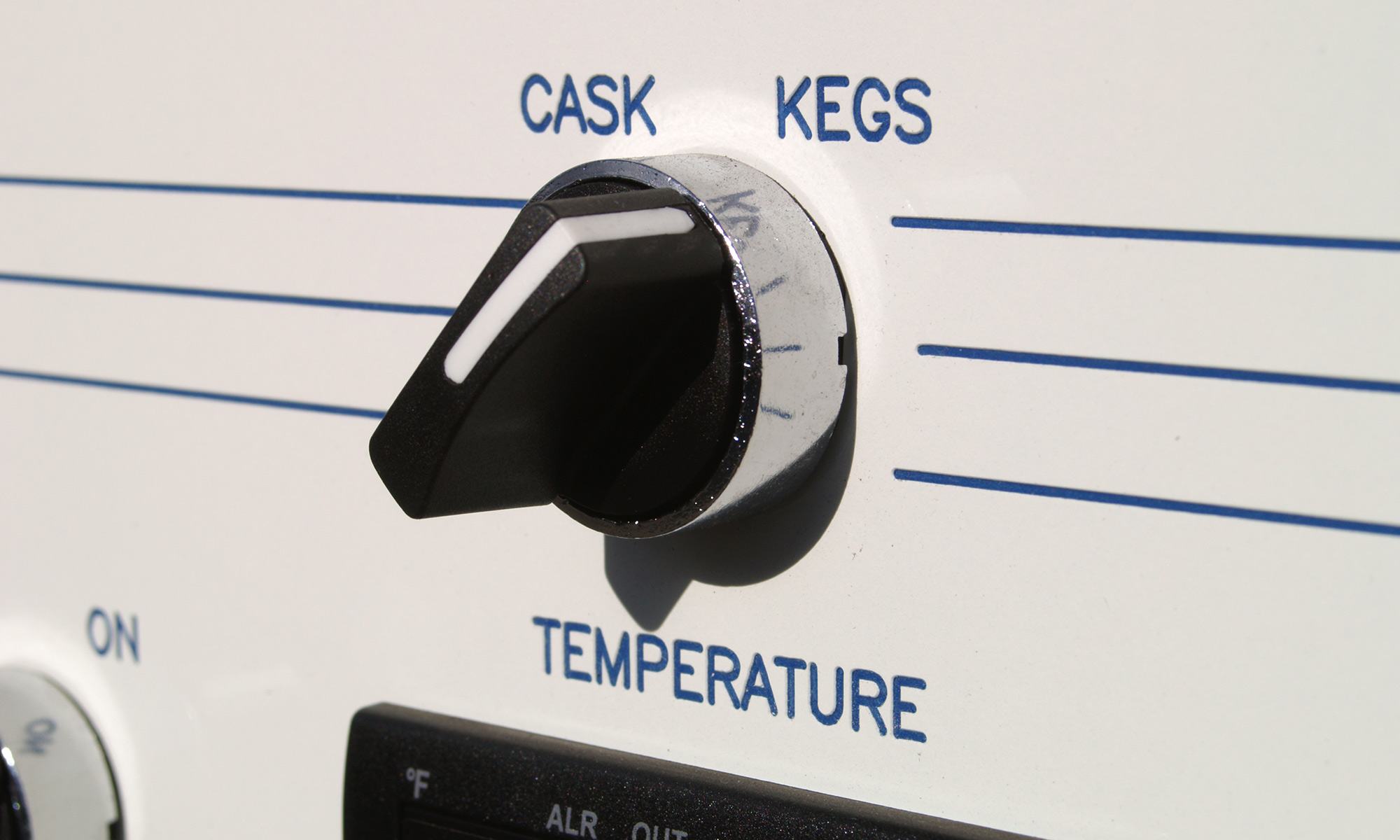

- Select Keg Washing function on the control panel
- Press Start
- From this point onwards the cleaning process is automatic.
- An initial air purge will remove any remaining dregs from the keg
- The automated cycle works until the ‘Cycle Complete’ light turns green.
- The kegs are then dismounted and the flexible hoses detached.
- The cleaning process is now ready to start again.
- The cycle time is approximately 5 minutes.
Benefits
- Saves time – The automated cask washing process can clean up to 48 casks or kegs per hour.
- Saves effort – Units are cleaned automatically without need of any additional lifting.
- Saves water – Recycled water from the cask cleaning process is cleverly reused minimising usage costs and the environmental impact.
- Reduces problems – Reduces the expensive issue of contaminated units potentially spoiling batches of ale.
- Reduces ‘bottlenecks’ – quickly restores supply of clean units into circulation.
200K SERIES
- Casks per hour: 26
- Heating: Electric 9kW (200KE) | Steam (200KS)
- Power requirement: 16A 3 phase (200KE) | 16A 3 phase or 13A Single (200KS)
- Air requirement: 5-10 bar 14.5CFM
- Water requirement: 80 Litres / Min
- Water consumption: 15 Litres per cask/keg
- Tank capacity: 45 Litres
- Steam requirements: Max. 80°C 1-3 bar @ 30-40 kg/hr (200KS)
- Dimensions (LxWxH): 1350mm x 770mm (+500mm when keg bed raised) x 1695mm
(200KE = Electric heated. 200KS = Steam heated.)
300K SERIES
- Casks per hour: 39
- Heating: Electric 12kW (300KE) | Steam (300KS)
- Power requirement: 32A 3 phase (300KE) | 16A 3 phase or 13A Single (300KS)
- Air requirement: 5-10 bar 14.5CFM
- Water requirement: 120 Litres / Min
- Water consumption: 15 Litres per cask/keg
- Tank capacity: 65 Litres
- Steam requirements: Max. 80°C 1-3 bar @ 30-40 kg/hr (300KS)
- Dimensions (LxWxH): 2170mm x 770mm (+500mm when keg bed raised) x 1695mm
(300KE = Electric heated. 300KS = Steam heated.)
400K SERIES
- Casks per hour: 52
- Heating: Electric 12kW (400KE) | Steam (400KS)
- Power requirement: 32A 3 phase (400KE) | 16A 3 phase or 13A Single (400KS)
- Air requirement: 5-10 bar 14.5CFM
- Water requirement: 160 Litres / Min
- Water consumption: 15 Litres per cask/keg
- Tank capacity: 95 Litres
- Steam requirements: Max. 80°C 1-3 bar @ 30-40 kg/hr (300KS)
- Dimensions (LxWxH): 2410mm x 865mm (+500mm when keg bed raised) x 1705mm
(400KE = Electric heated. 400KS = Steam heated.)
